Tested motors

Tip

Look for the motors that have have resistance from 1 - 5 ohms and max current rating of 3A.

Tested motors

Motor Name Specifications Link
.

drawing

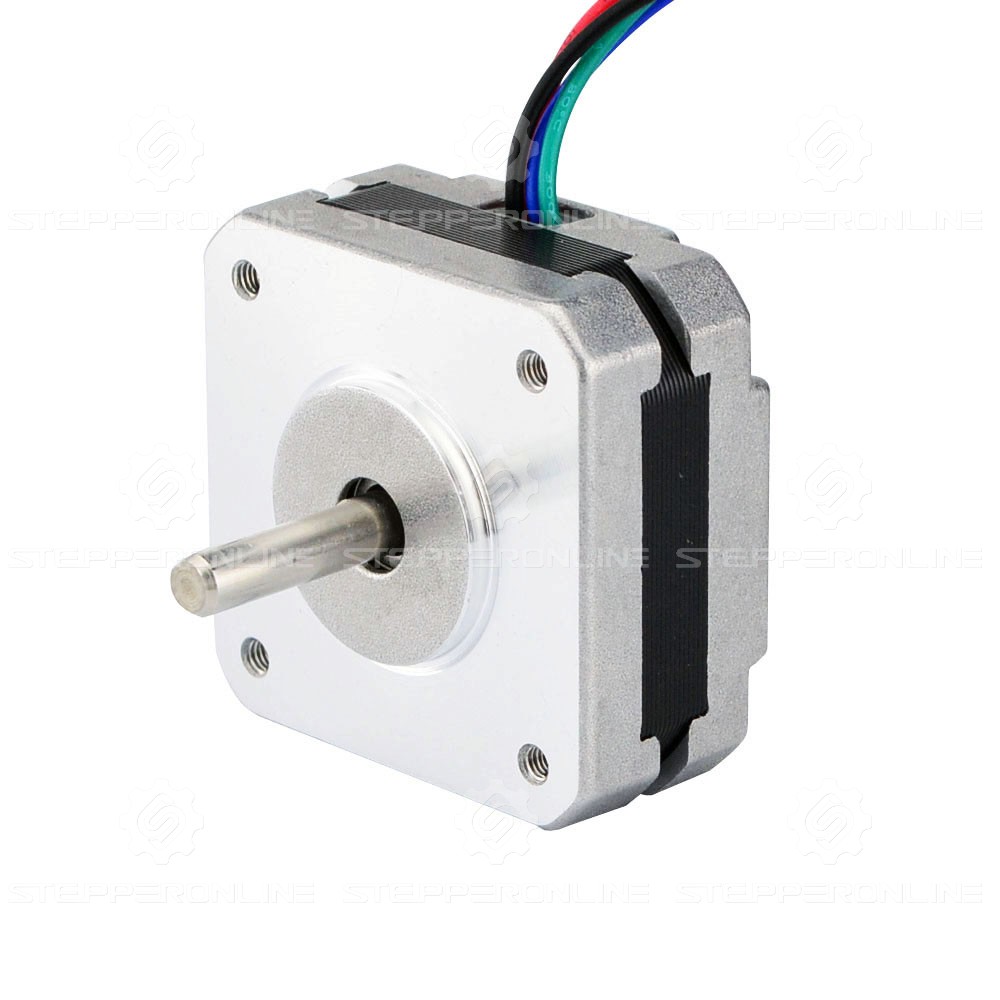

17HS08-1004S Pole pairs: 50
Weight: 140 g
Phase to phase Resistance: 3.7 ohm
Inductance: 4.5mH		 Link
.

drawing

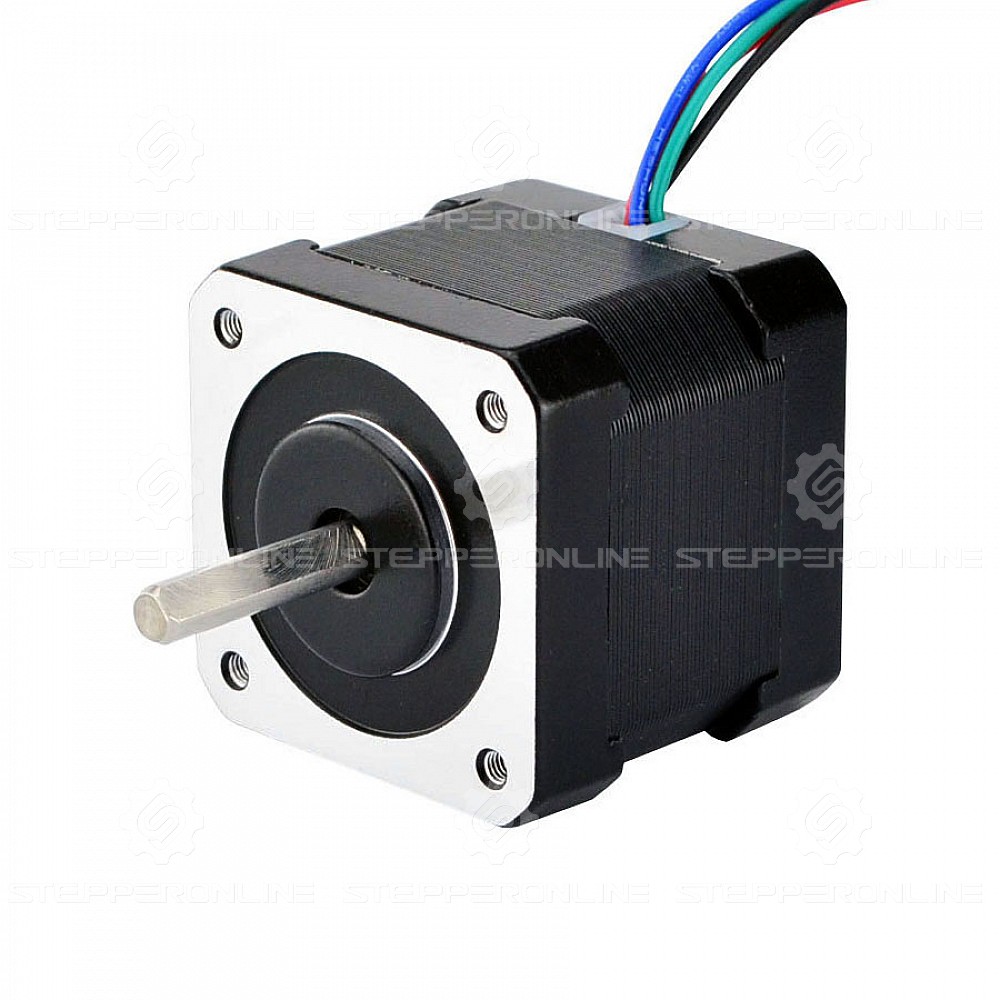

17HS16-2004S1 Pole pairs: 50
Weight: 310 g
Phase to phase Resistance: 1.1 ohm
Inductance: 2.6mH		 Link
.

drawing

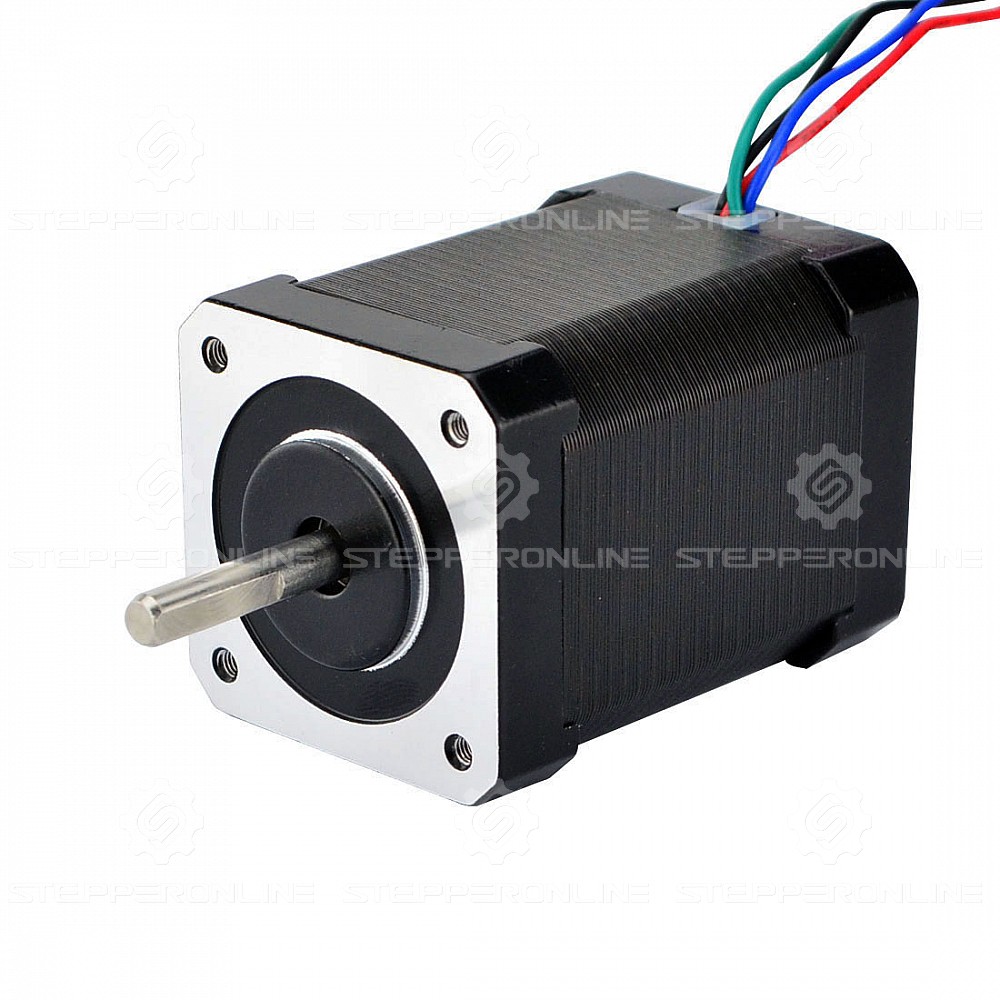

17HS24-2104S Pole pairs: 50
Weight: 500 g
Phase to phase Resistance: 1.6 ohm
Inductance: 3mH		 Link
.

drawing

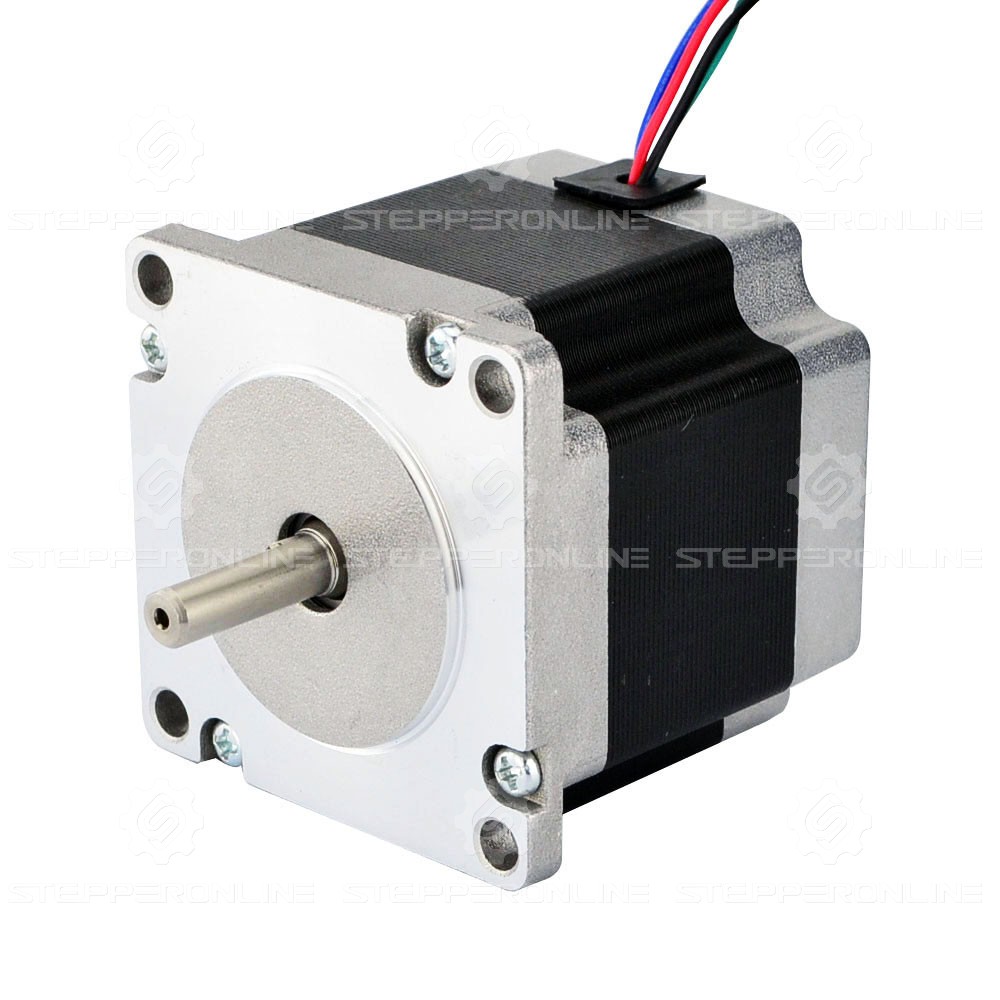

23HM22-2804S Pole pairs: 100
Weight: 700 g
Phase to phase Resistance: 1.16 ohm
Inductance: 4.2mH		 Link
