Peripherals

The PAROL6 control board has multiple ways to interact with the outside world. Communication with high-level code running on a PC is done over USB, but you can also use other features such as I/O or CAN.

PAROL6 control board peripheral connections overview

I/O connections

PAROL6 is equipped with 2 isolated inputs and 2 isolated outputs.

Isolated power supply

It is standard practice to use isolated inputs and outputs to protect your device. To use an isolated power supply, follow the connections shown in the image below. Connect the negative terminal of the power supply to any GND_SEL pin and the positive terminal to any HV_SEL pin.

Note

Even though inputs and outputs are now isolated from the robot, the E-stop is still connected to the robot's power supply.

Wiring diagram for isolated external power supply on PAROL6 I/O

Using an isolated power supply means you are not limited to 24 V — you can use 5 V or 12 V depending on your application.

Not isolated power supply

Following the connections shown in the image below will connect all inputs and outputs to the robot's power supply.

Wiring diagram for non-isolated internal 24V power supply on PAROL6 I/O

Examples of input connections

Inputs can be limit switches, push buttons, sensors, and similar devices. For a limit switch, connect one end to HV_SEL and the other to IN1 or IN2.

Examples of output connections

Outputs can be relays, lamps, low-power actuators, and similar devices. For a relay, connect one end to GND_SEL and the other to OUT1 or OUT2.

CAN bus

Still under development

CAN bus will allow you to connect external grippers and additional axes. There are 2 CAN buses. Note that CAN2 is not soldered by default.

MSG gripper

MSG and SSG48 gripper use the same CAN interface and have support for all the same commands!


SSG48 gripper connector location on the PAROL6 robotic arm

The gripper connects to the connector shown above on the PAROL6 robotic arm. If building your own robot and gripper, make sure you follow the wiring instructions — failing to do so can destroy your gripper and control board. Test the PAROL6 robot first, then attach the gripper. Troubleshooting both at the same time is difficult.

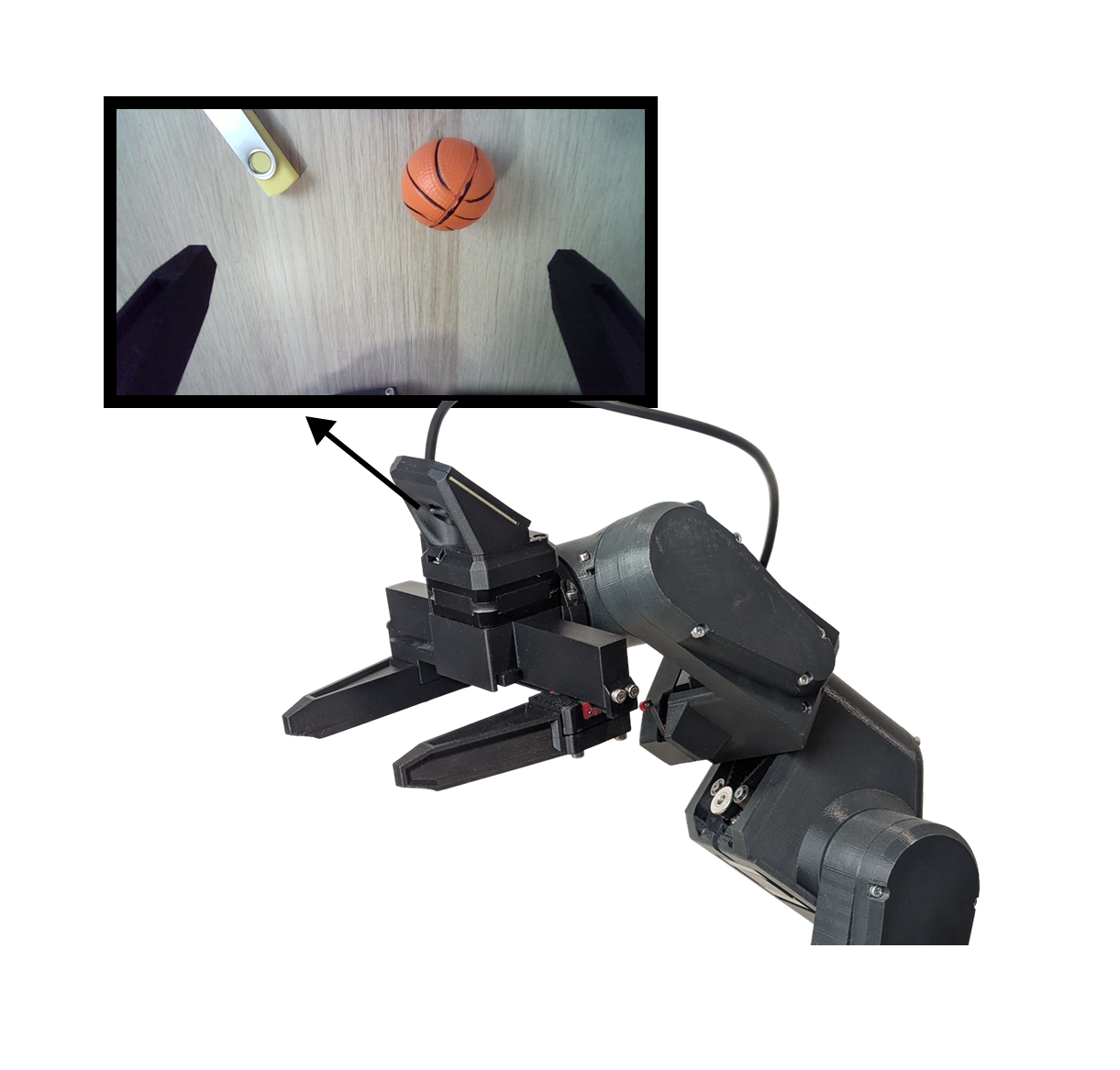

SSG48 gripper mounted on the PAROL6 arm

The MSG gripper works by default with PAROL6 commander software and the control board. There is no need to configure anything — it is plug and play. To build one visit: Link or to buy one, visit the Source Robotics shop.

SSG48 gripper

SSG48 gripper connector location on the PAROL6 robotic arm

The gripper connects to the connector shown above on the PAROL6 robotic arm. If building your own robot and gripper, make sure you follow the wiring instructions — failing to do so can destroy your gripper and control board. Test the PAROL6 robot first, then attach the gripper. Troubleshooting both at the same time is difficult.

SSG48 gripper mounted on the PAROL6 arm

The SSG48 works by default with PAROL6 commander software and the control board. There is no need to configure anything — it is plug and play. To build or buy one, visit the Source Robotics shop.

Change in main.cpp

If using the SSG48 gripper, change j5_homing_offset in main.cpp to 8035.

Pneumatics

Recommended pressure

The recommended pressure for PAROL6, and generally in industry, is 6–8 bar. All pneumatic examples in our videos use pressures in that range.

Example of gripper connection

The 2 tubes going into a gripper exit the PAROL6 robotic arm at the forearm. The tubes from the pneumatic valve must be connected to the pneumatic connections at the base of the robot. Orientation matters — swapping the 2 tubes will change the gripper between normally closed and normally open.

Pneumatic gripper tube connection diagram for PAROL6

Connect the valve wires to GND_SEL and OUTPUT1.

Vacuum gripper

You will need to print the vacuum gripper holder from the GitHub folder. By default the gripper will spin freely; if you don't want that, tie it with a zip tie to the screw shown in the image.

Vacuum gripper mounted on the PAROL6 forearm

You will need to block one port of the pneumatic valve. Use a tube of a fitting size and screw in an M3 screw with threadlocker.

Pneumatic valve port blocked with an M3 screw on PAROL6

E-stop

Connection is as follows:

E-stop wiring diagram for the PAROL6 control board

Warning

The E-stop must be connected for normal operation of the robot.

Tip

If you don't have an E-stop, you can use any normally closed (NC) switch.

Tip

The PAROL6 control board has connectors for 2 E-stops. Both share the same GPIO on the microcontroller and both must be NC contacts.

The E-stop must be a normally closed (NC) contact type — normally open (NO) will not work. NC is beneficial because if the E-stop is unplugged or its wires are cut, it will also register as an E-stop press, which is the desired behaviour.
